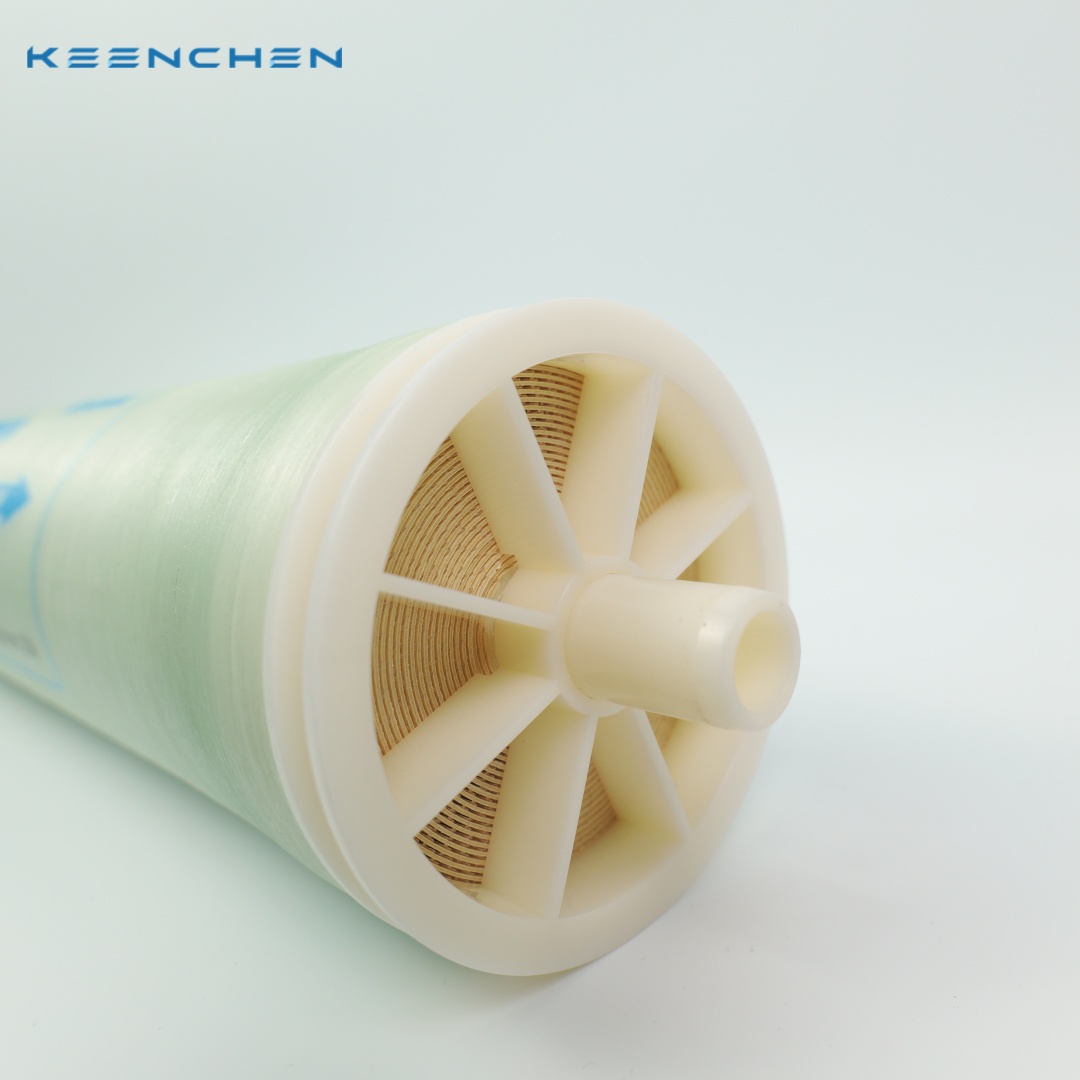

KC-SW4021 Compact Seawater RO Membrane
KC-SW4021 is a compact seawater reverse osmosis membrane element developed for space-limited desalination equipment and low-flow seawater treatment systems. Based on aromatic polyamide technology, it delivers reliable salt rejection and stable water production under high-pressure operating conditions.
Designed for feed water with salinity above 10,000 mg/L, KC-SW4021 enables flexible system integration in compact RO equipment while maintaining dependable desalination performance. It is widely used in portable desalination units, marine water treatment systems, and other space-constrained applications.
Call Us
+86 13272120223
+86 13272120223
Contact us
Please leave your specific needs and contact information, and the staff will contact you as soon as possible!
Description
Key Features
- Compact design for space-limited RO equipment
- High-pressure operation for seawater desalination
- Reliable salt rejection with stable water production
- Optimized for portable and modular RO systems
- Suitable for high-salinity feed water treatment
- Stable performance in continuous compact system operation
Application
- Compact seawater desalination systems
- Portable and mobile RO units
- Marine freshwater production systems
- Decentralized water supply systems
- Pilot-scale desalination equipment
- High-salinity water treatment applications
Technical Specifications& Performance
| Model | Stabilized Salt Rejection (%) | Effective Membrane Area (ft²(m²)) | Average Permeate Flow (GPD(m³/d)) |
|---|---|---|---|
| KC-SW4021 | 99.70 | 36(3.3) | 700(2.6) |
Standard Test Conditions
| Testing Pressure psi (MPa) | Test Solution NaCl (ppm) | Recovery (%) | Temperature (°C) | PH |
|---|---|---|---|---|
| 800(5.52) | 32000 | 4 | 25 | 7.5-8.0 |
Dimensions
Packaging
- Individually sealed plastic bag
- Single unit carton box
- Master cartons for multiple units
- Pallet available for export shipment
FAQ
FAQ
Q1. What types of equipment are best suited for KC-SW4021?
KC-SW4021 is commonly integrated into compact desalination equipment, portable RO units, marine water treatment systems, and other applications where installation space is limited.
Q2. How should I choose between KC-SW4021 and KC-SW4040?
The choice depends on required water production, available installation space, and system configuration. KC-SW4021 is designed for more compact equipment, while KC-SW4040 is typically used in higher-capacity modular systems.
Q3. What should be considered before selecting a compact seawater RO membrane?
Key factors include feed water salinity, required permeate output, available installation space, operating pressure, and overall system design.
Q4. Which projects commonly use compact seawater RO membranes?
They are widely used in marine applications, mobile desalination equipment, emergency water supply systems, and other decentralized water treatment projects.
