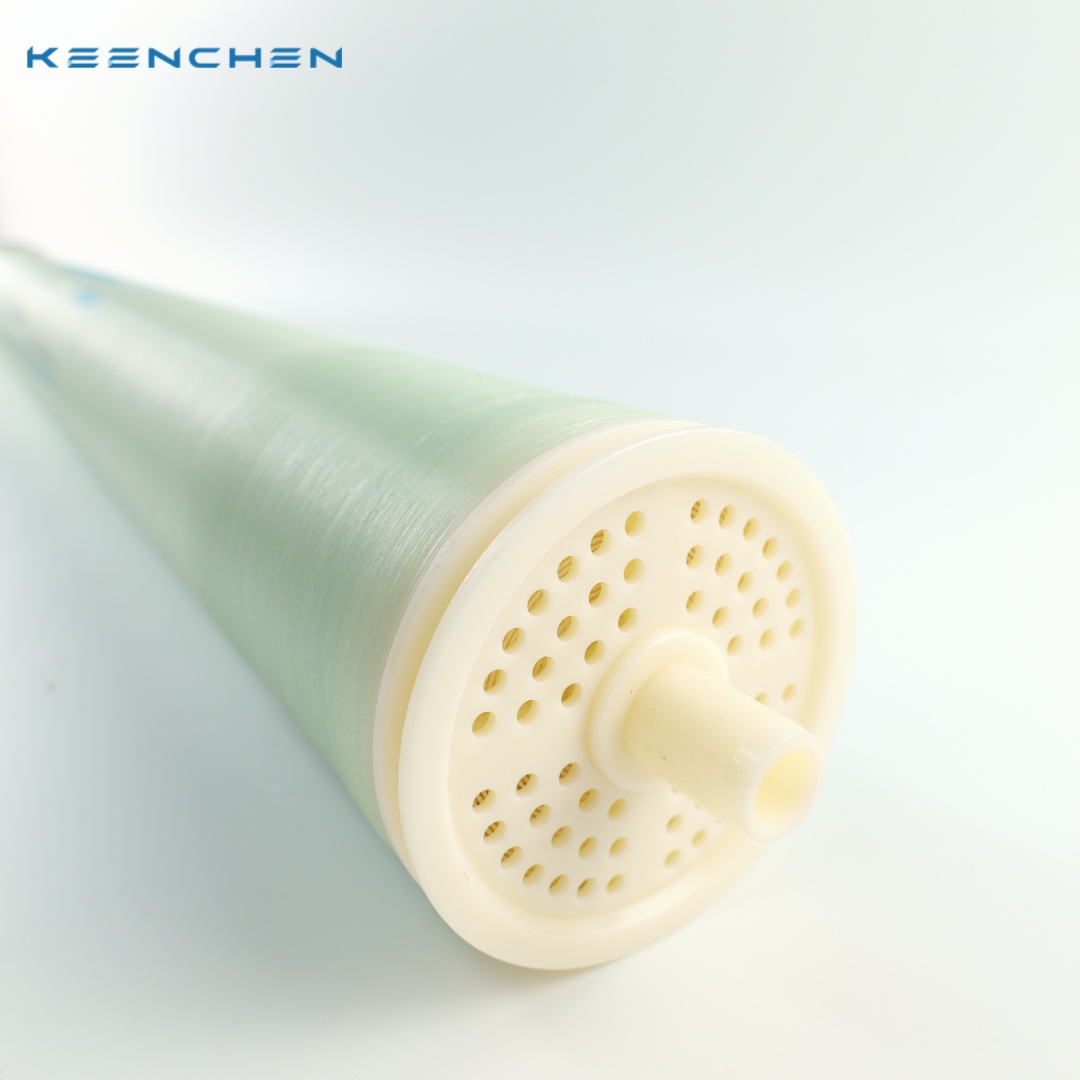

KC-ULP4040 Low-Pressure RO Membrane
KC-ULP4040 is an ultra-low pressure reverse osmosis membrane element developed for small to medium-sized RO systems treating low-salinity water. Based on aromatic polyamide technology, it provides stable water production and reliable salt rejection under reduced operating pressure.
Designed for feed water with TDS up to 2,000 mg/L, KC-ULP4040 helps improve system energy efficiency while maintaining consistent water quality. It is widely used in municipal, commercial, and industrial water treatment applications where compact system design and reliable operation are important.
Call Us
+86 13272120223
+86 13272120223
Contact us
Please leave your specific needs and contact information, and the staff will contact you as soon as possible!
Description
Key Features
- Ultra-low operating pressure for reduced energy consumption
- High permeate flow with reliable salt rejection
- Helps reduce pump load and overall operating costs
- Optimized for low-salinity feed water treatment
- Suitable for small and medium-sized RO systems
- Stable performance for continuous water production
- Easy integration into municipal and industrial water treatment equipment
Application
- Small and medium-sized RO systems
- Surface water treatment
- Groundwater purification
- Municipal drinking water treatment
- Bottled and packaged drinking water production
- Industrial pure water systems
- Second-pass RO systems in multi-stage water treatment processes
Technical Specifications& Performance
| Model | Stabilized Salt Rejection (%) | Effective Membrane Area (ft²(m²)) | Average Permeate Flow (GPD(m³/d)) |
|---|---|---|---|
| KC-ULP4040 | 99.30 | 85(7.9) | 2600(9.8) |
| KC-ULP-HR4040 | 99.60 | 100(9.3) | 2400(9.1) |
| KC-ULP-HF4040 | 99.50 | 100(9.3) | 2700(10.2) |
Standard Test Conditions
| Testing Pressure psi (MPa) | Test Solution NaCl (ppm) | Recovery (%) | Temperature (°C) | PH |
|---|---|---|---|---|
| 150(1.03) | 1500 mg/L | 15 | 25 | 7.5-8.0 |

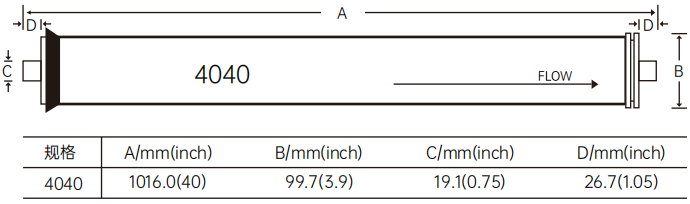

Dimensions
Packaging
- Individually sealed plastic bag
- Single unit carton box
- Master cartons for multiple units
- Pallet available for export shipment
FAQ
FAQ
Q1. Why is the 4040 membrane size commonly selected for small and medium-sized RO systems?
The 4040 configuration offers a practical balance between water production, installation space, and system flexibility, making it suitable for many commercial and industrial RO applications.
Q2. What should be evaluated before selecting a 4040 ULP membrane?
Key considerations include feed water quality, target permeate capacity, operating pressure, recovery rate, and available installation space.
Q3. Can KC-ULP4040 be used in existing RO systems as a replacement membrane?
Yes. When membrane dimensions and system operating conditions are compatible, it can be evaluated as an alternative for system upgrades or supplier replacement.
Q4. Which applications typically benefit from KC-ULP4040?
It is widely used in bottled water production, municipal water treatment, industrial pure water systems, and other applications where stable performance and energy-efficient operation are required.
