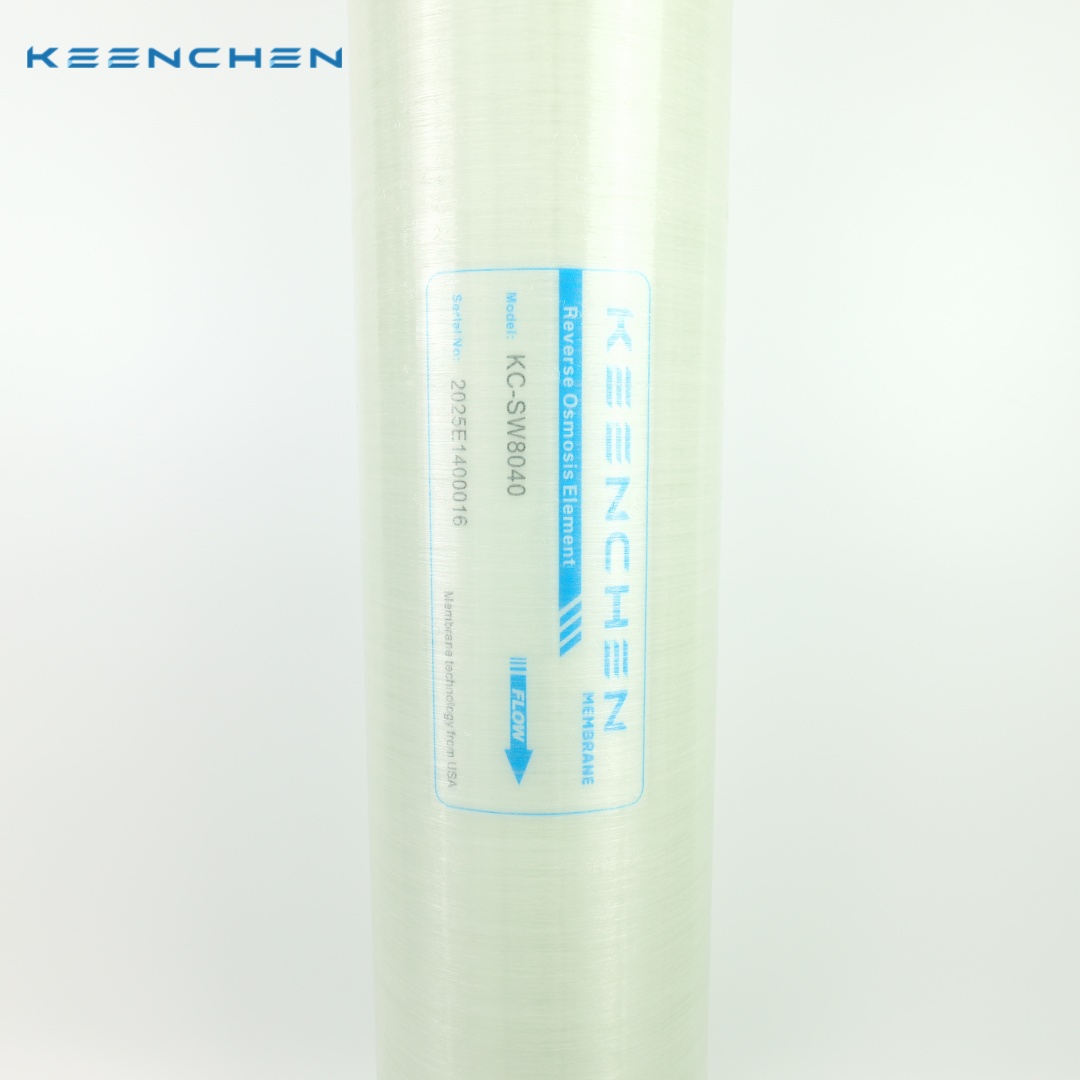

KC-SW8040 Seawater RO Membrane Element for Large-Scale Desalination Projects
KC-SW8040 is a high-performance seawater reverse osmosis membrane element developed for desalination of high-salinity water under demanding operating conditions. Based on aromatic polyamide technology, it delivers reliable salt rejection and stable permeate flow in high-pressure RO systems.
Designed for feed water with salinity above 10,000 mg/L, KC-SW8040 supports efficient seawater desalination while maintaining long-term operational stability. It is widely used in municipal desalination, industrial water treatment, and other large-scale seawater applications.
Call Us
+86 13272120223
+86 13272120223
Contact us
Please leave your specific needs and contact information, and the staff will contact you as soon as possible!
Description
Key Features
- High-pressure operation for seawater desalination
- Reliable salt rejection with stable water production
- High permeate flow for large-scale RO systems
- Designed for demanding high-salinity applications
- Long-term operational stability and durability
- Suitable for continuous industrial operation
Application
- Seawater desalination
- Brine recovery and reuse systems
- High-salinity groundwater treatment
- Industrial process water treatment
- Coastal water supply projects
- Marine and offshore freshwater production
Technical Specifications& Performance
| Model | Stabilized Salt Rejection (%) | Effective Membrane Area (ft²(m²)) | Average Permeate Flow (GPD(m³/d)) |
|---|---|---|---|
| KC-SW8040 | 99.8 | 400(37.2) | 6500(24.6) |
| KC-SW-HF8040 | 99.85 | 400(37.2) | 9000(34.1) |
| KC-SW-FR8040 | 99.85 | 400(37.2) | 9000(34.1) |
Standard Test Conditions
| Testing Pressure psi (MPa) | Test Solution NaCl (ppm) | Recovery (%) | Temperature (°C) | PH |
|---|---|---|---|---|
| 800(5.52) | 32000 | 8 | 25 | 7.5-8.0 |

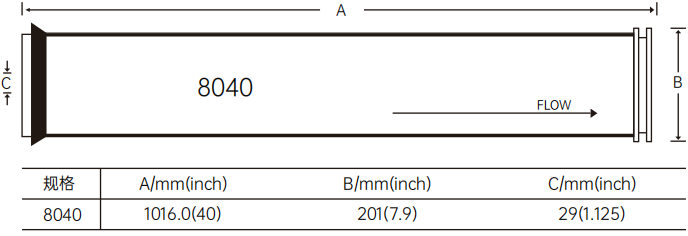

Dimensions
Packaging
- Individually sealed plastic bag
- Single unit carton box
- Master cartons for multiple units
- Pallet available for export shipment
FAQ
FAQ
Q1. When should a seawater SW RO membrane be selected instead of a brackish water BW membrane?
Seawater membranes are generally recommended for feed water with high salinity and applications requiring higher operating pressure and higher salt rejection than conventional brackish water systems.
Q2. What should be considered before selecting a seawater SW RO membrane?
Feed water salinity, required permeate quality, operating pressure, recovery rate, and overall system design should all be evaluated during membrane selection.
Q3. Which projects commonly use KC-SW8040?
KC-SW8040 is widely applied in municipal desalination plants, industrial seawater treatment facilities, offshore platforms, and coastal freshwater production projects.
Q4. Is KC-SW8040 suitable for OEM and EPC water treatment projects?
Yes. It is suitable for OEM equipment manufacturers, EPC contractors, and system integrators developing customized seawater desalination solutions.
