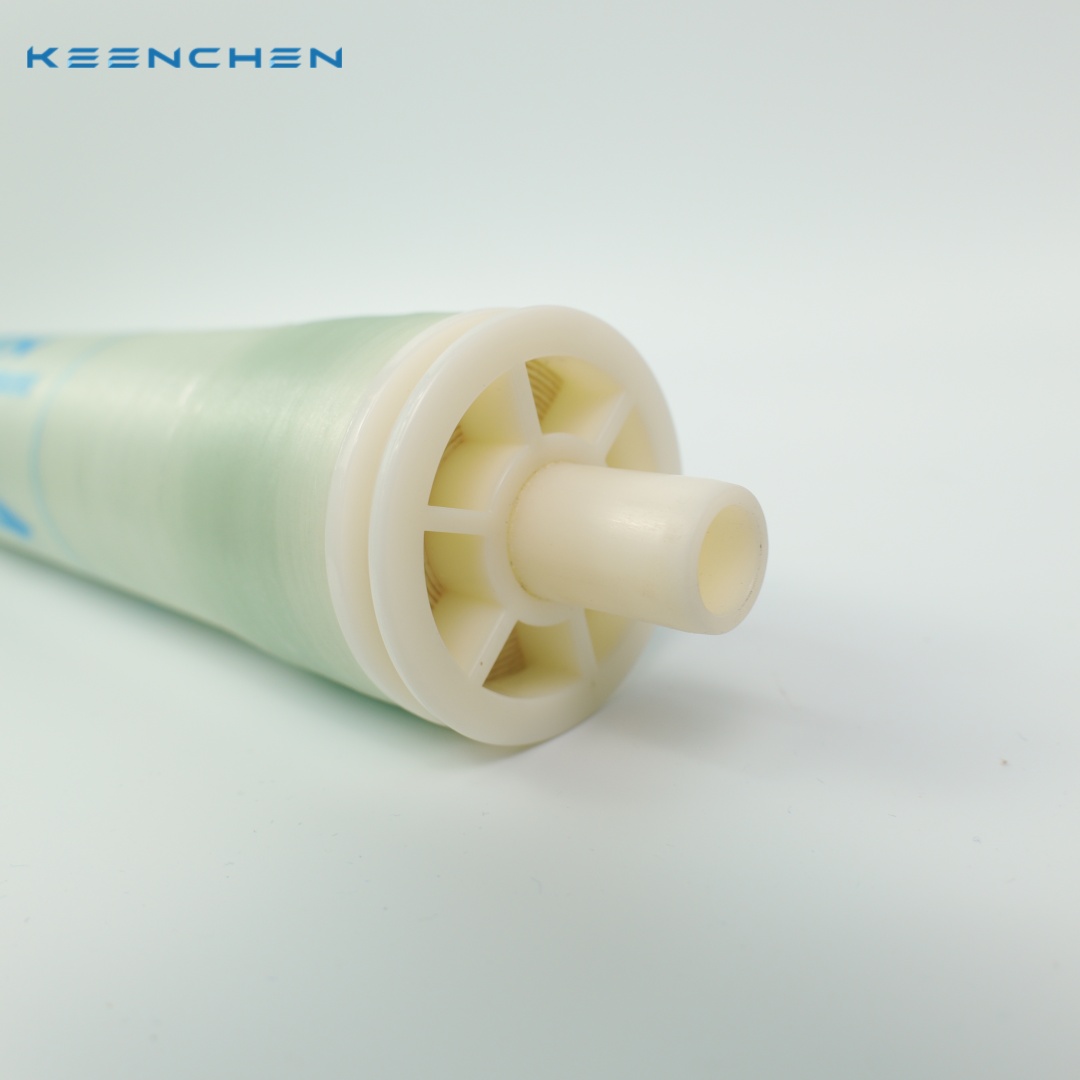

KC-BW2540 & BW2521 Brackish Water RO Membranes
KC-BW-2540 and KC-BW-2521 are compact brackish water reverse osmosis membrane elements developed for small RO systems, decentralized water treatment equipment, and space-limited installations. Based on aromatic polyamide technology, they provide stable salt rejection and reliable permeate flow under low-pressure brackish water operating conditions.
Designed for feed water TDS up to approximately 5,000 mg/L, these models are suitable for brackish water, surface water, groundwater, and tap water treatment. KC-BW-2540 is generally selected for higher compact-system capacity, while KC-BW-2521 is better suited to smaller, low-flow RO equipment.
Call Us
+86 13272120223
+86 13272120223
Contact us
Please leave your specific needs and contact information, and the staff will contact you as soon as possible!
Description
Key Features
- Compact design for small RO system integration
- Stable salt rejection for reliable permeate water quality
- Low-pressure operation for improved energy efficiency
- Suitable for brackish water, groundwater, surface water, and tap water treatment
- Flexible selection between 2540 and 2521 sizes
- Reliable performance for continuous compact system operation
Application
- Brackish water desalination
- Surface water treatment
- Groundwater purification
- Tap water purification
- Small industrial pure water systems
- Decentralized water treatment equipment
Technical Specifications& Performance
| Model | Stabilized Salt Rejection (%) | Effective Membrane Area (ft²(m²)) | Average Permeate Flow (GPD(m³/d)) |
|---|---|---|---|
| KC-BW-2540 | 99.50 | 27(2.5) | 750(2.8) |
| KC-BW-2521 | 99.50 | 14(1.3) | 400(1.5) |
Standard Test Conditions
| Testing Pressure psi (MPa) | Test Solution NaCl (ppm) | Recovery (%) | Temperature (°C) | PH |
|---|---|---|---|---|
| 255(1.55) | 2000 mg/L | 15(2540) 8(2521) | 25 | 7.5-8.0 |
Dimensions
Packaging
- Individually sealed plastic bag
- Single unit carton box
- Master cartons for multiple units
- Pallet available for export shipment
FAQ
FAQ
Q1. How should I choose between KC-BW-2540 and KC-BW-2521?
Selection mainly depends on required water output, available installation space, and system configuration. KC-BW-2540 is generally used for higher compact-system capacity, while KC-BW-2521 is better suited to smaller low-flow equipment.
Q2. Are KC-BW-2540 and KC-BW-2521 suitable for decentralized water treatment systems?
Yes. Their compact size and low-pressure operation make them suitable for decentralized, remote, and small-scale RO systems.
Q3. Can these membranes be used for seawater desalination?
KC-BW-2540 and KC-BW-2521 are designed for brackish water and low-to-medium salinity feed water. For seawater desalination or high-salinity feed water above 10,000 mg/L, SW series membranes are generally recommended.
Q4. What should be evaluated before selecting these models?
Feed water TDS, target permeate quality, required water output, installation space, operating pressure, system recovery, and pretreatment conditions should all be reviewed.
